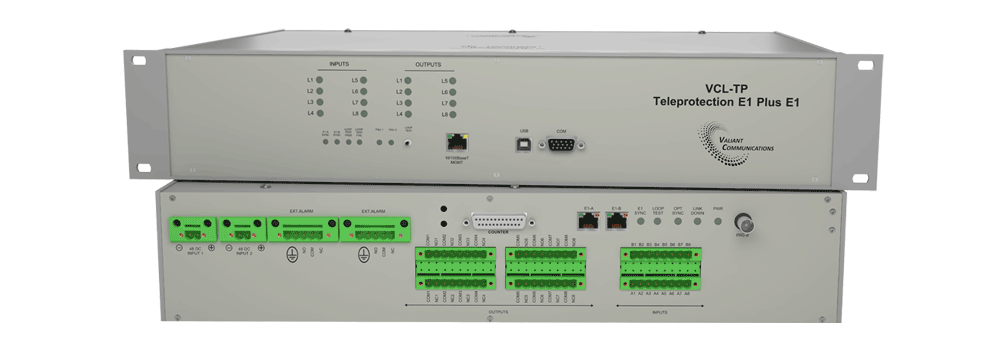

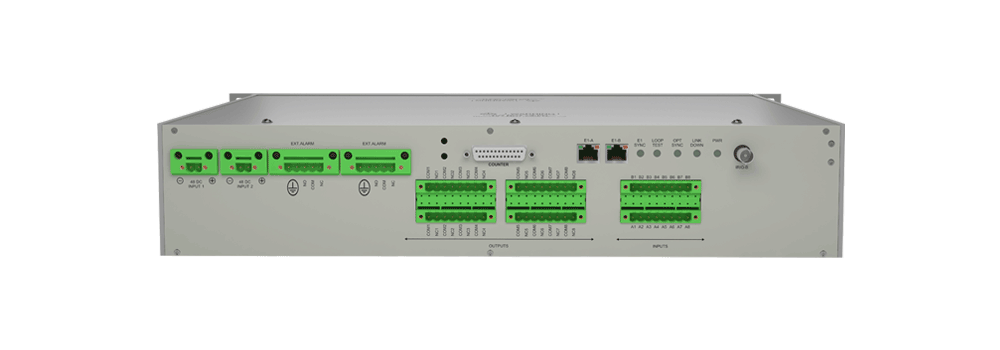

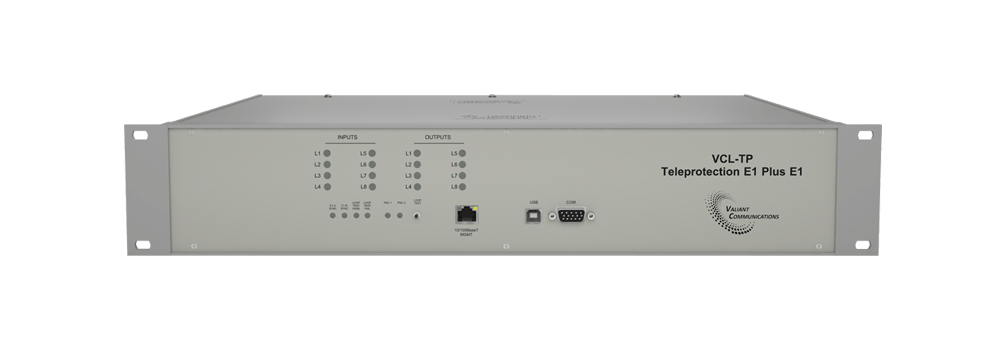

E1 (2.048Mbps) Plus E1 (2.048Mbps)
(1+1 redundant Interfaces)

Get Data Sheet
  • 8 Binary Commands over E1 plus E1, 1+1 redundant interfaces with path protection / route protection with automatic failover
  • Offers up 8 independent Binary Command Input and 8 independent Binary Command Output channels which can be operated selectively; or simultaneously; or in a combination over an E1 (2.048Mbps) plus E1 (2.048Mbps) - 1+1 redundant transmission links with link failure detection and automatic failover.
  • Command Transfer Time (including relay operating time) is <5ms



Features & Highlights:

  • Unrivaled Speed, Security and Reliability
  • Bi-directional transmission of 8 Binary Command Inputs and 8 Binary Command Outputs
  • Dual Direction Teleprotection with Teleprotection Command Distribution
  • 8 Channels Trip Counter Display and Alarm Extension Unit
  • Compact, standard 19-Inch Rack-mountable chassis
  • Use in a Standalone, Point-To-Point Application over E1 (2.048Mbps) and E1 transmission links.
  • Use as an integrated part of the VCL-MX Version-6 E1 Voice and Data Multiplexer solution over a SDH or PDH data network.
  • Full Duplex Operation, Automatic loop test facility
  • User programmable to support “Direct Tripping”, “Permissive Tripping” and “Blocking” Protection Schemes. Default “Direct Tripping”.
  • Compliant with IEC 60834-1 and all applicable sections of IEC 60834-2 standards
  • SNMPv2 management protocol for management and monitoring
  • Available in 24V DC, 48V DC, 110V DC, 220V DC, 250V DC, 110V AC and 220V AC configurations.

Network Interface Option

  • E1, 2.048Mbps interface over an E1 / SDH link

1+1 Redundant Path Protection / Route Protection Option

  • E1, 2.048Mbps plus E1, 2.048Mbps (1+1 redundant) interfaces

Application Diagram:

Teleprotection over an E1 (2.048Mbps) plus E1 (2.048Mbps) Interface (Redundant)

Application - E1 (2.048Mbps) and E1 (2.048Mbps)

Click here for more Teleprotection Application Diagrams.
