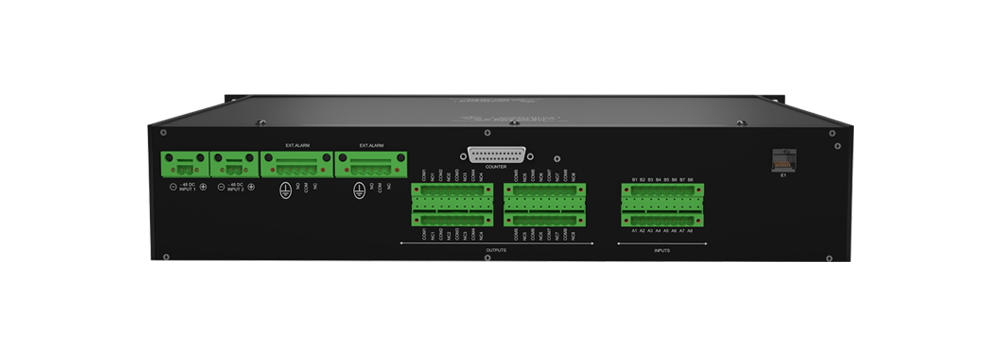

VCL-TP, Teleprotection is an extremely rugged digital protection signalling equipment that has been designed to operate reliably even under the most demanding conditions and environment. The VCL-TP, Teleprotection Equipment offers up to 8, 2-way independent command channels which can be operated over an E1, 2.048Mbps, G.703 interface for transmission over E1 links.
In the E1 plus E1 (1+1 E1 Protected) Mode the equipment offers automatic link failure detection and E1 failover protection. In the event that primary E1 transmission link fails, the equipment detects primary E1 transmission link failure and automatically switches to standby E1 network interface in less than 1ms. This ensures that protection is never lost at any point of time due to the failure of any single E1 transmission interface or the transmission link.
The VCL-TP, Teleprotection is available with 1+0 and 1+1 E1, 2.048Mbps interface options and may be used in the following modes:
Figure # 1 – Typical Application over an E1 (2.048Mbps) interface, or as an integrated part of the E1 PDH Voice & Data Multiplexer solution over an SDH or PDH data network.
Figure # 2 – Typical Application with E1, 2.048Mbps, G.703 interface over an E1 Link (over SDH / PDH Network) as an integrated part of the E1 PDH Voice & Data Multiplexer solution over an SDH or PDH data network.
Valiant Communications is an ISO 9001:2015, ISO 10001:2018, ISO 14001:2015, ISO 27001:2013 and ISO 45001:2018 certified equipment manufacturer.
