Patch Panels
16 E1, 120 Ohms (RJ45) to E1, 75 Ohms

VCL Products > Patch Pannels > 16 E1, 120 Ohms (RJ45) to E1, 75 Ohms

120 Ohms (RJ45) to 75 Ohms (BNC) Converter

E1 G.703 - 120 Ohms (RJ45) to 75 Ohms (BNC) Converter Balun Panel - 16xE1 Balun Panel

Get Data Sheet

Valiant's 16 x E1 G.703 balun panel with 120 Ohms (RJ45) to 75 Ohms (BNC) converter offers 16 x E1 120 Ohms balanced (RJ45) to 75 Ohms un-balanced (BNC) termination.

What does it do?

The E1, 120 Ohms (RJ45) to E1, 75 Ohms (BNC Female Connector) Converter, may be used to convert up to 16, E1, 120 Ohms (RJ45) Interfaces to E1, 75 Ohms (BNC Female Connector) Interfaces.

Application Where is it used?

The E1, 120 Ohms (RJ45) to E1, 75 Ohms (BNC Female Connector) Converter, may be used in applications where the user requires to convert up to 16 (or fewer), E1, 120 Ohms (RJ45) Interfaces to 16 (or fewer) E1, 75 Ohms (BNC Female Connector) Interfaces.

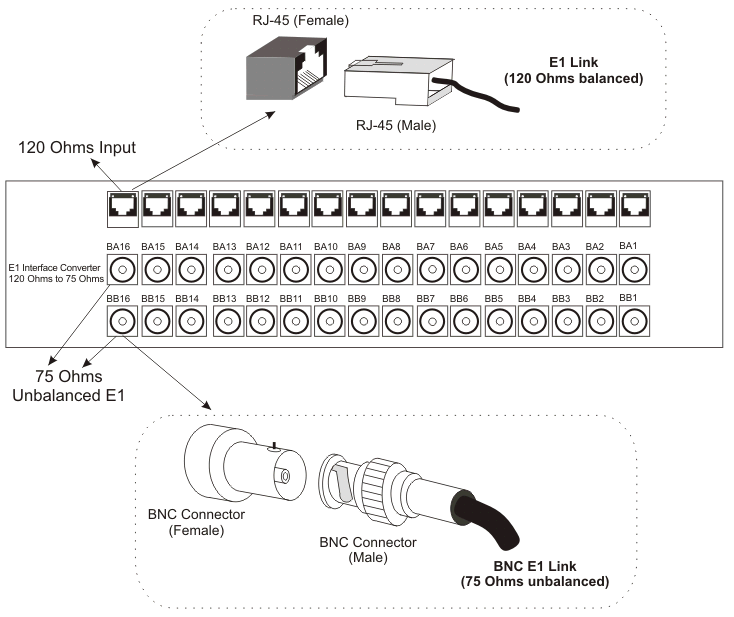

Connecting / Converting an E1, 120 Ohms (RJ45) Interface to an E1, 75 Ohms (BNC Female Connector) Interface.

16 x E1 120 Ohms / 75 Ohms Converter (RJ45 to BNC Female Connector)
S. No.	Part No.	Product Description	Qty
1	VCL-1477-CON-120-RJ45F-75-BNC-F16	16 x E1 120 Ohms / 75 Ohms Converter (RJ45 to BNC Female Connector)	1

Mechanical Specification

Rack Mounting, Standard 19 inch DIN Rack
H x D x W : 90mm x 45mm x 485mm
Weight : 1.4 kg.

Mechanical - E1 G.703 - 120 Ohms (RJ45) to 75 Ohms (BNC) Converter Balun Panel

Shelf image: E1 G.703 - 120 Ohms (RJ45) to 75 Ohms (BNC) Converter Balun Panel
