E1, 75 Ohms, 16 Port High Impedance (Hi-Z)
Monitoring Patch Panel (75 Ohms – Version)
The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed for applications where E1 circuits are required to be "patched" as well as simultaneously "tapped" for non-intrusive monitoring applications
Application Where is it used?
The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed for applications where E1 circuits are required to be "patched" as well as simultaneously "tapped" for non-intrusive monitoring applications.
The E1, 75 Ohms, 16 Port High Impedance Monitoring Patch Panel is primarily designed to patch up to 16, E1 circuits. It also, simultaneously, provides up to 16 high-impedance (Hi-Z) outputs on it's monitoring (MON) port(s) from which, both the transmit (Tx) and the receive (Rx) signals of the patched E1 link can be "tapped non-intrusively" (i.e without disturbing or loading the active E1 link(s) in any manner, and connected to E1 Groomers, Probes or Analysers).
Features
- 19 inch rack mount.
- High quality and cost effective.
- Small and compact.
E1 - 75 Ohms Patch-Panel is used for E1 Patching and Monitoring Application

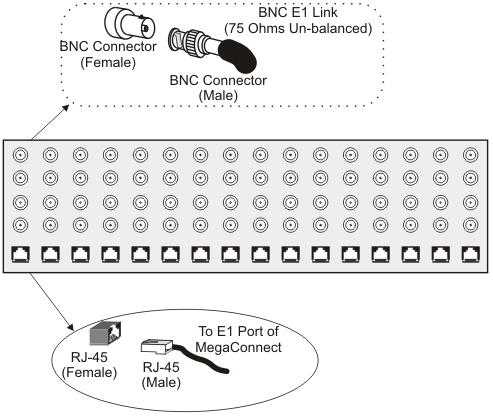

75 Ohms Patch Panel with Hi-Z Monitoring Port is used for E1 Monitoring Application.
The BNC Connector is used for Data IN/Data OUT from the 75 Ohms E1 links which are required to be monitored.

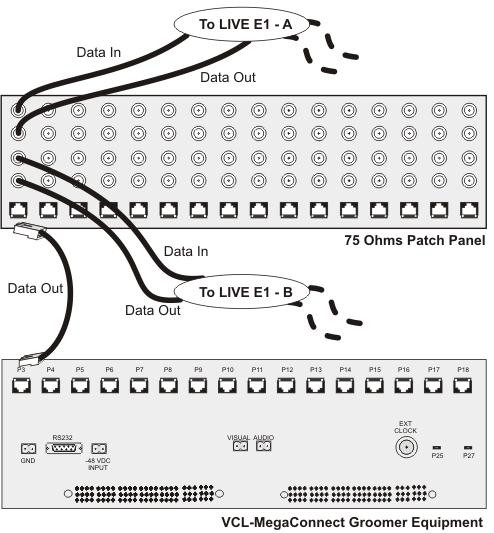

Data IN of Patch-Panel (BNC) will be connected to Transmit/Data OUT of E1 Port. Data OUT of Patch-Panel (BNC) will be connected to Receive/Data IN of E1 Port.
Mechanical Specification
- Rack Mounting, Standard 19 inch DIN Rack
- H x D x W : 86mm x 63mm x 48mm
- Weight : 1.4 kg.
