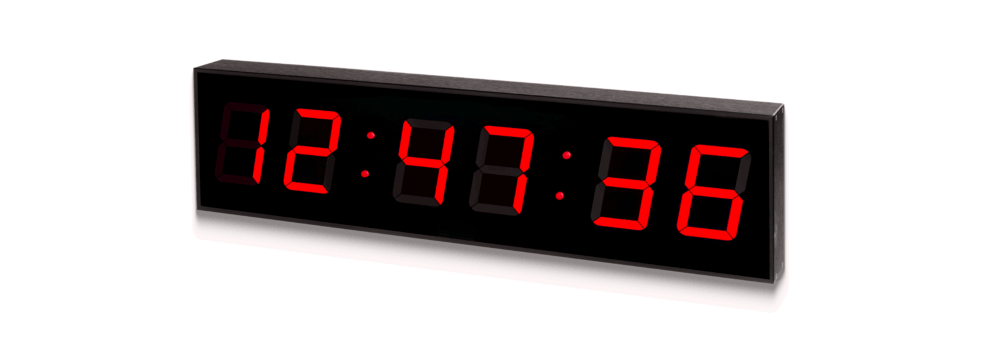

VCL-2106: VCL-W-KLOX High Reliability Time Display Unit

Get Data Sheet

Valiant’s VCL-W-KLOX is a high precision digital clock that offers un-matched reliability, dependability and security that is not commonly found in similar competing products. The VCL-W-KLOX is available with a very wide range of interface options that include NTP (Ethernet LAN) and Electrical Ethernet Interfaces to cater to a host of applications to display time information with various levels of accuracy according to customer requirements.

The VCL-W-KLOX is a temperature hardened design with industrial grade EMI, EMC and surge protection provided on all interfaces making it suitable for installing in the harshest industrial or commercial environments that may include sub-stations, mines, defense installations, airports, railway, metro stations as well as industrial establishments.

The VCL-W-KLOX is a temperature hardened design with industrial grade EMI, EMC and surge protection provided on all interfaces making it suitable for installing in the harshest industrial or commercial environments that may include sub-stations, mines, defense installations, airports, railway, metro stations as well as industrial establishments.

The VCL-W-KLOX is available with 2-Inch (57mm), 4-Inch (100mm) and 8-Inch (200mm) digits and its 7-segment display consists of high luminance LEDs that offer excellent readability (up to 10m distance for the 2-Inch display, up to 40 m distance for the 4-Inch display and up to 80 m distance for the 8-Inch display). VCL-2106 supports battery backup for high stability during free running mode.

Features, Highlights and Options:

  • Uses external NTP source for Accurate time
  • Day Display Format (XXX, MON to SUN)
  • Date Display Format ( MM:DD:YY )
  • Time Display Format (24 Hr., HH:MM:SS, from 00 to 23 Hr.)
  • NMS Communication
  • LED Status Indicator. High Power LED Alarm to indicate loss of synchronization with the Master Clock.
  • Uses standard Ethernet wiring, RJ-45 Connector
  • 2-Inch (57mm), 4-Inch (100mm) and 8-Inch (200mm) high luminance digit displays
  • Adjustable Brightness through DIP Switch
  • Non-corrosive aluminum housing, powder Coated in black RAL 9005
  • Alternating display of time, date with adjustable time period
  • May be configured by the user to display UTC time, Local Time or World Time
  • Wall mounting, table top, ceiling suspension, rack mountable or wall bracket mounting
  • Dual 10/100BaseT Ethernet Ports for looping multiple clocks in a network.
  • Battery backup for high stability during free running mode.

Security and Management:

  • USB and 10/100BaseT Management Interfaces
  • Remote Management over an IP network
  • Unmatched Security. Password Protected Management Interface
  • Support DHCP
  • Reset switch
  • Surge Protection
  • Separate VLANs for NTP and Management
  • Separate IP Addresses for NTP and Management Interfaces.

Readability and Color Options:

  • Up to 20 m distance for the 2-Inch (57mm) display
  • Up to 40 m distance for the 4-Inch (100mm) display
  • Up to 80 m distance for the 8-Inch (200mm) display
  • Four-digit (HH:MM) Display or six-digit (HH:MM:SS)

Display Options:

  • 7 Segment - Red
  • Non-Glare Display
  • Dot Matrix - Red / Yellow / White

Reliability and Accuracy:

  • May be provisioned for installing with 1+1 Redundant NTP Servers. The VCL-W-KLOX shall automatically fallback to the Standby NTP Server if the Primary NTP Server becomes un-available.
  • High Stability Oscillator for standalone operation (in the event of the un-availability of the external time source)
  • The clock drift is less than ± 0.1 second in a 24 hour time-period in the absence of remote / NTP Synchronization.
  • Extremely high clock accuracy.
  • Up to 1ms with NTP synchronization option (depending upon the network).

Standards / Approvals:

  • CE, FCC, IEC, RoHS

Environmental:

  • Altitude: Up to 3000 meters
  • Industrial Hardened Design. Non-corrosive chassis.
  • Conducted Immunity as per IEC 61000-4-6
  • Radiated Immunity IEC 61000-4-3
  • Meets and exceeds CISPR 32 / EN55022 Class B Emission requirements
  • Voltage and Surge Withstand: Meets and exceeds IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 Specifications.
  • Immunity to Voltage Dips, Short Power Supply
  • Interruptions and Voltage variations meets and Exceeds IEC 61000-4-11 specifications

VCL-W-KLOX, Digital Display Clock

  • Display LED: Red, White and Yellow
  • Time Display HH:MM or HH:MM:SS (optional)
  • Day Display Format (XXX, MON to SUN)
  • Date Display Format ( MM:DD:YY )
  • Frequency Display Format (XX.XX.Hz)
  • Height of figures: 57mm, 100mm, 200mm (Optional)
  • Version: NTP Ethernet, RJ-45, 10/100BaseT Clock
  • Remote Management over TCP-IP Network
  • Aluminum case. IP20 Rating
  • Power supply 230 VAC/50-60Hz
  • Lexan anti-reflective front panel
  • Tropicalized electronics board
  • Alternate display of time and date

Power Supply Options:

  • 48V DC
  • 90V AC-240V AC, 50Hz
  • 110V DC

Power Supply Consumption:

  • Power Supply (in Watts) < 15 Watts
