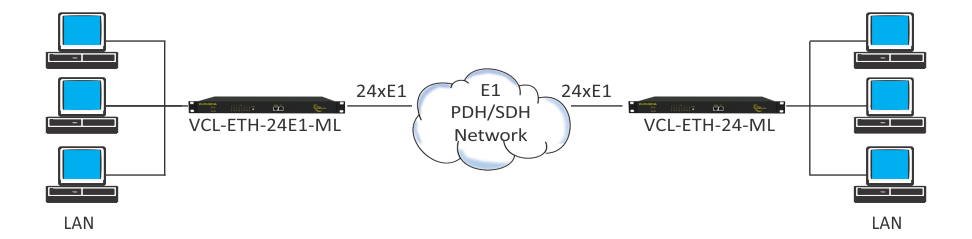

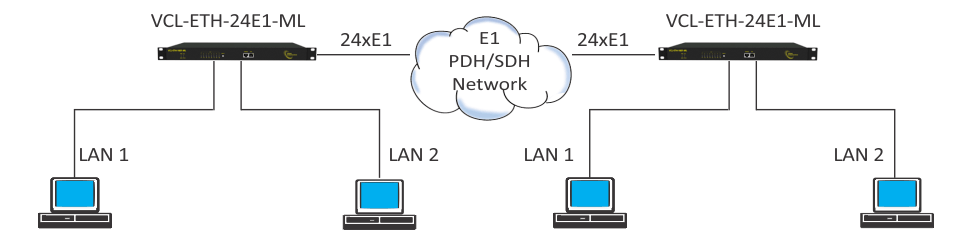

Valiant’s VCL-ETH-8E1-ML / VCL-ETH-16E1-ML / VCL-ETH-24E1-ML Converter allows the user to send Ethernet data
between two points or between multiple points (maximum 16 directions), over 8/16/24 E1 Links respectively. E1 Interfaces options are 75 Ohms/120 Ohms
(Optional – as per user requirement). This equipment provides two Electrical Gigabit (1000/100/10M) Ethernet Interfaces (RJ-45) ports at the customer site.

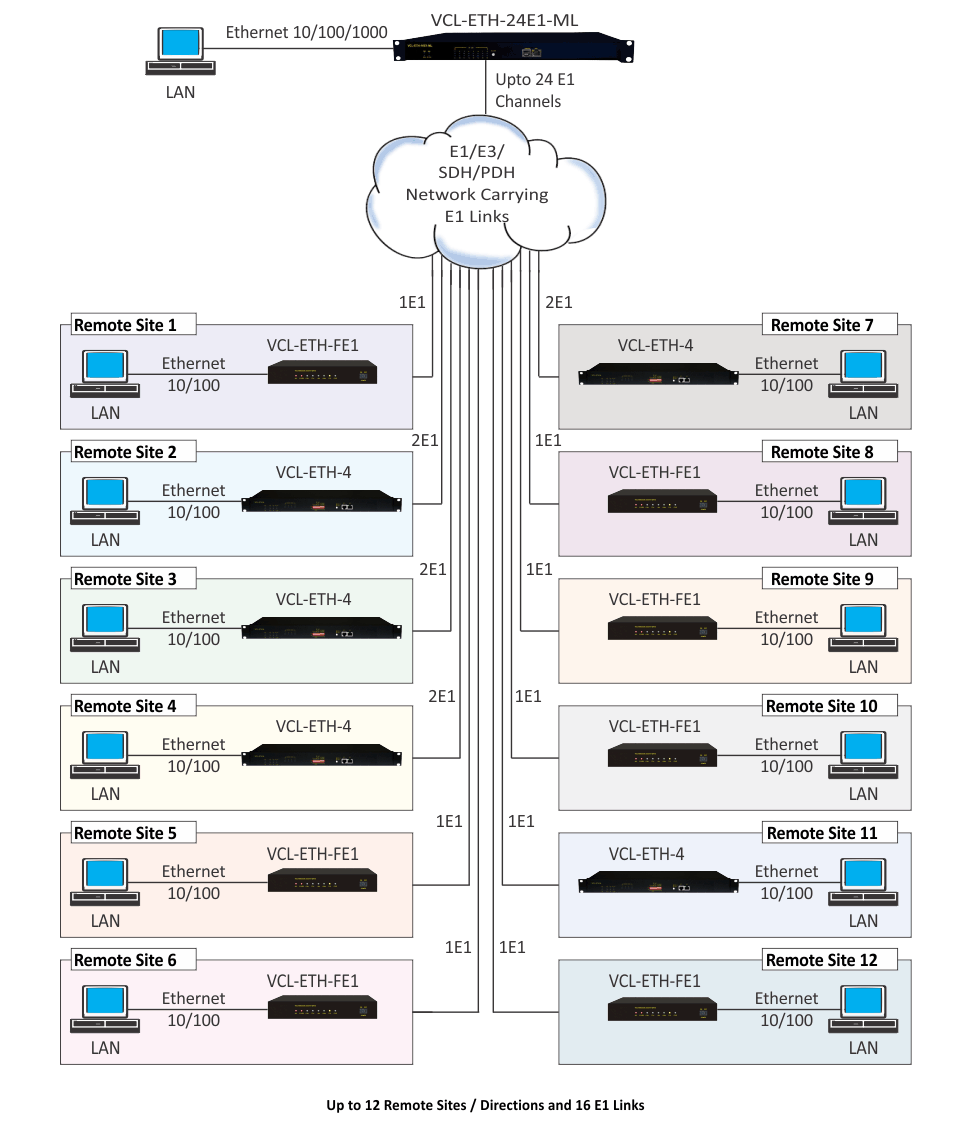

The equipment supports point-to-point - multilink protocol which allows a single unit to be connected to multiple units (maximum 16) at the same time to
transport Ethernet data from multiple sites to a single central location.
This equipment is available in the following configurations:
This product is available in two versions:

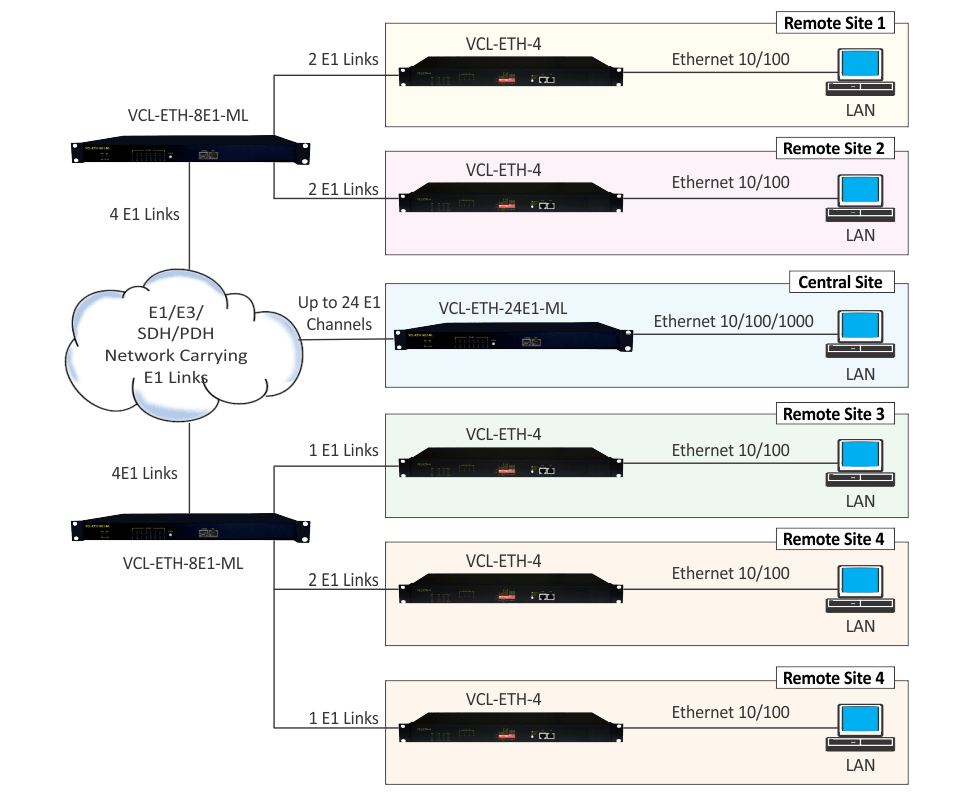

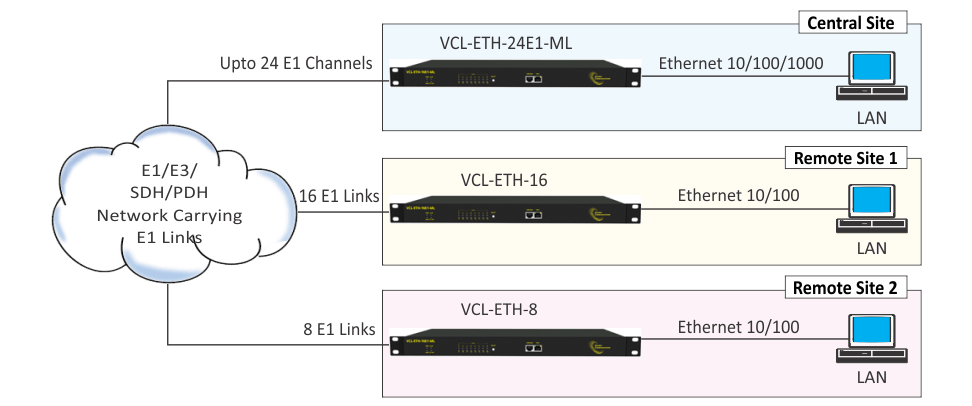

The equipment can be installed (at central site) and used with other equipment (i.e. with Ethernet over Multi E1 - DLX or VCL-ETH-FE1
at remote sites) to meet various application requirements.
The Converter is an Ethernet extension device, complied to IEEE 802.3 series standards, which utilizes TDM telecom infrastructure (the
telecom network of E1s, or of PDH, SDH and E1 / E3 / SDH microwave etc.), complied to ITU-T G.7041, G.7042, G.7043 and G.8040 standards,
for carrying Ethernet data. It converts the Ethernet data into E1 frame format for transmission over the existing TDM (E1) links and then
re-converts the E1 back into Ethernet data at the far-end terminal, to BRIDGE Ethernet LANs over the existing E1 based telecom network.
The device can effectively utilize the existing TDM network to transport Ethernet data at low investment.
The equipment may be used for the following purposes:
Valiant Communications is an ISO 9001:2015, ISO 10001:2018,
ISO 14001:2015, ISO 27001:2013 and ISO 45001:2018 certified equipment manufacturer.
