SafeComm
8 E1 Links (24 E1 Ports)

VCL Products > Automatic Protection Switch > 8 E1 Links (24 E1 Ports)


Failsafe - The equipment itself never becomes a point of failure. It automatically reverts to and reconnects to the primary link even in power down condition.

8 E1 Links (24 E1 Ports), 1+1 Automatic Protection /
AB Fallback Switching Equipment

Get Data Sheet

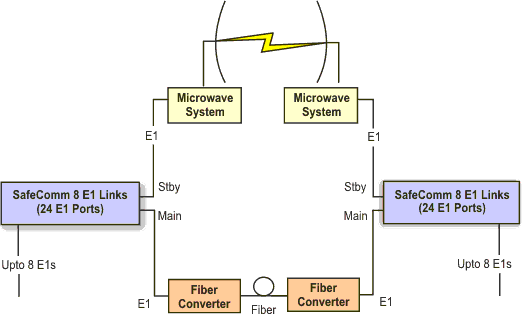

The VCL-SafeComm, 8 E1 Links (24 E1 Ports), 1+1 Automatic Protection / AB Fallback Switching (APS) Equipment may be used to protect upto 8 E1 Links (24 E1 Ports), point-to-point links and provide an alternate communication route to each E1 Link between any two E1 points. In the event of the failure of the primary (Main) E1 communication route, the VCL-SafeComm, 8 E1 Links (1+1 Automatic Protection / AB Fallback Switching Equipment) automatically switches the E1 traffic to a secondary (standby) E1 route. The VCL-SafeComm, 8 E1, 1+1 Automatic Protection / AB Fallback Switching equipment is available in a 2U high chassis which may be mounted in any DIN standard,19-Inch rack.

SafeComm 8 E1 Links 24 E1 Ports Fallback Switching



Valiant Communications is an ISO 9001:2015, ISO 10001:2018, ISO 14001:2015, ISO 27001:2013 and ISO 45001:2018 certified equipment manufacturer.
